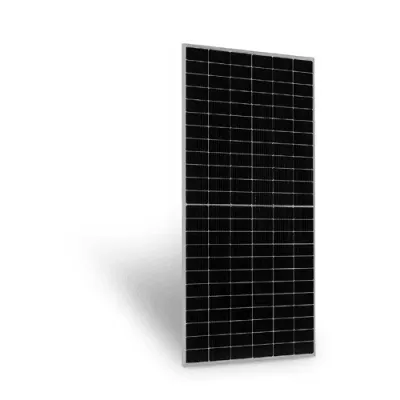

The Tiger Pro 72HC 550-570 Watt Mono-Facial Jinko Solar Panel is designed for maximum efficiency and durability, making it ideal for off-grid, DIY, and commercial solar projects.

Featuring advanced multi-busbar technology and an optimized electrical design, this panel offers superior light trapping, current collection, and reduced hot spot loss.

With a robust construction that withstands extreme environmental conditions, this module is perfect for long-term energy generation. Backed by a 12-year product warranty and a 25-year linear power warranty, it guarantees reliable power performance over its lifetime.

Key Features
- Multi-Busbar Technology: Increases light trapping and current collection, boosting module power output and reliability.
- Reduced Hot Spot Loss: Lower operating current and optimized electrical design significantly reduce hot spot loss, improving temperature management.
- Long-Term Durability: Certified to withstand wind loads up to 2400 Pa, ensuring strong resistance to harsh weather conditions.
- Linear Power Warranty: 0.55% annual power degradation over 25 years, maintaining up to 84.8% of its original power output.
- Environmental Resistance: High resistance to salt mist and ammonia, making it suitable for coastal and agricultural installations.

Technical Specifications

Power Output	550W - 570W
Maximum Power Voltage (Vmp)	40.90V - 41.34V
Maximum Power Current (Imp):	13.45A - 13.79A
Open Circuit Voltage (Voc)	49.62V - 50.04V
Short Circuit Current (Isc)	14.03A - 14.39A
Operating Temperature	-40°C to +85°C
Maximum System Voltage	1000 / 1500VDC (IEC)
Maximum Series Fuse Rating	25A
Junction Box	IP68 Rated
Dimensions (L x W x H)	2278mm x 1134mm x 35mm
Weight	27 kg
Front Glass	3.2mm, Anti-Reflection Coating, Low Iron, Tempered Glass
Frame	Anodized Aluminium Alloy
