Download full product specification here.

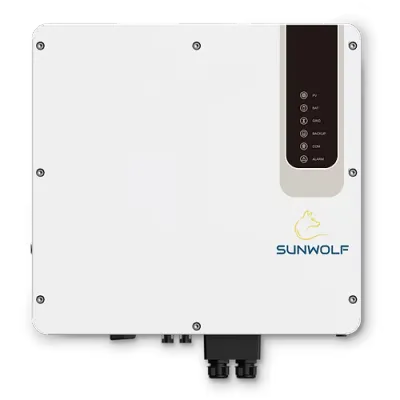

The 3 Phase Hybrid Inverter is a high-capacity solution designed for demanding commercial and industrial applications. With its impressive efficiency of up to 98.4% and the ability to handle up to 150% PV input power, it delivers exceptional performance and reliability. This inverter supports extensive battery configurations and offers advanced protection features, making it a robust choice for large-scale energy systems.

Key Features
- Exceptional Efficiency: Up to 98.4% efficiency for PV to AC and 98.0% for battery to AC.
- High Power Capacity: Handles up to 150% PV input power and offers continuous overload capacity of 110%.
- Advanced Protection: IP66 rated with optional AFCI and RSD for enhanced safety.
- Flexible Battery Options: Supports Lithium-ion and Lead-acid batteries with up to 2x50A charge/discharge current.
- Smart Maintenance: Features remote monitoring and management via a mobile app.

Technical Specifications

Inverter Capacity	12kW to 30kW
Input Voltage (PV)	160V-950V ; Max PV - 1000V
Output Power	12,000W to 30,000W
Output Voltage	380V/400V/415V
Efficiency	98.4% (PV to AC), 98.0% (Battery to AC)
Battery Compatibility	Lithium-ion/Lead-acid
Protection	IP66, DC Type II, AC Type III
Communication	Bluetooth, RS485, Optional Wi-Fi
Cooling System	Smart Fan Cooling
Warranty	5 Years
